Product Details

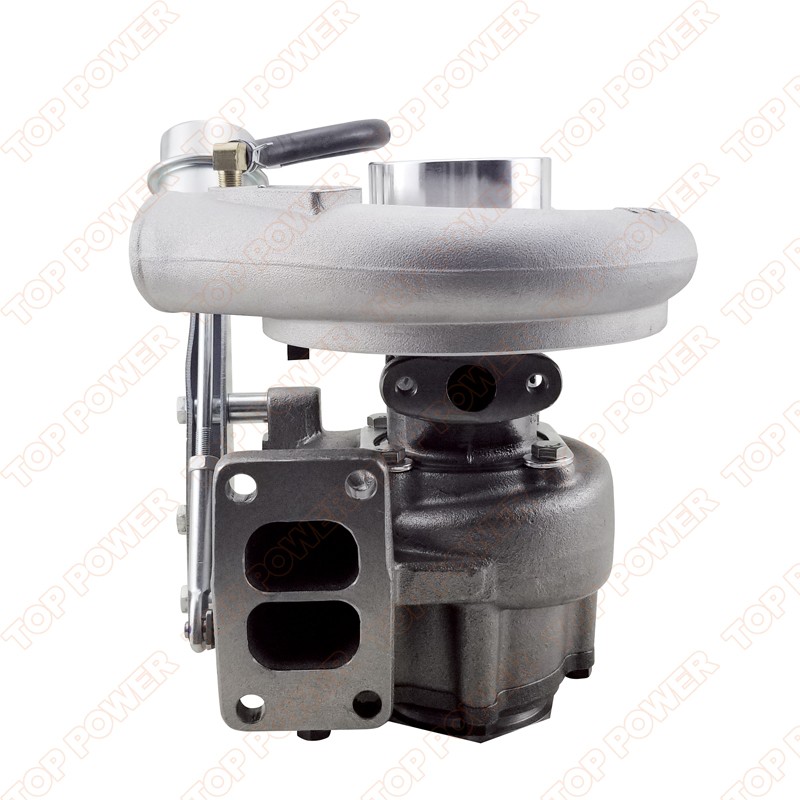

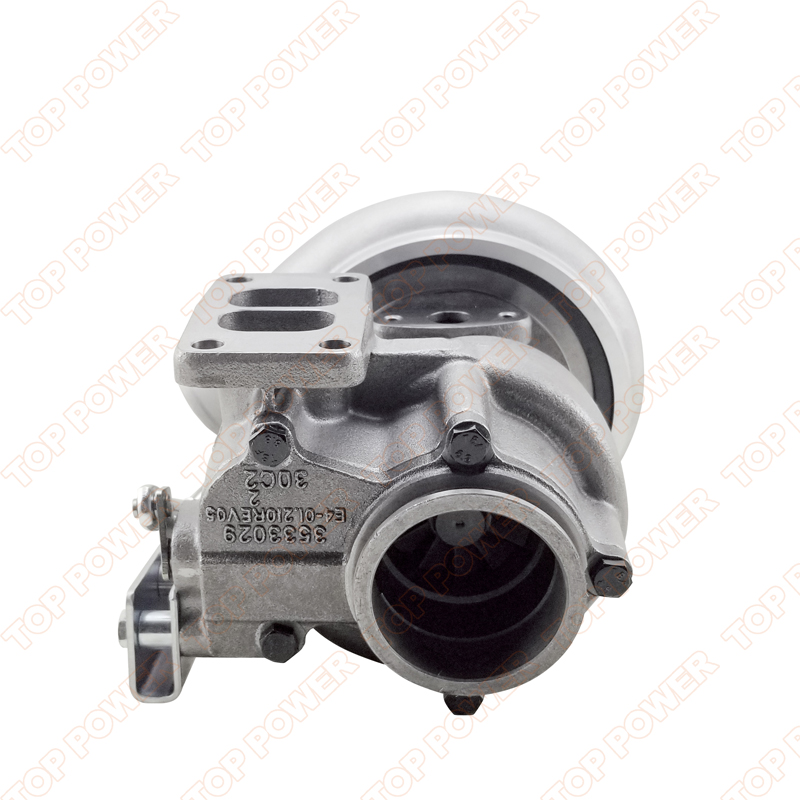

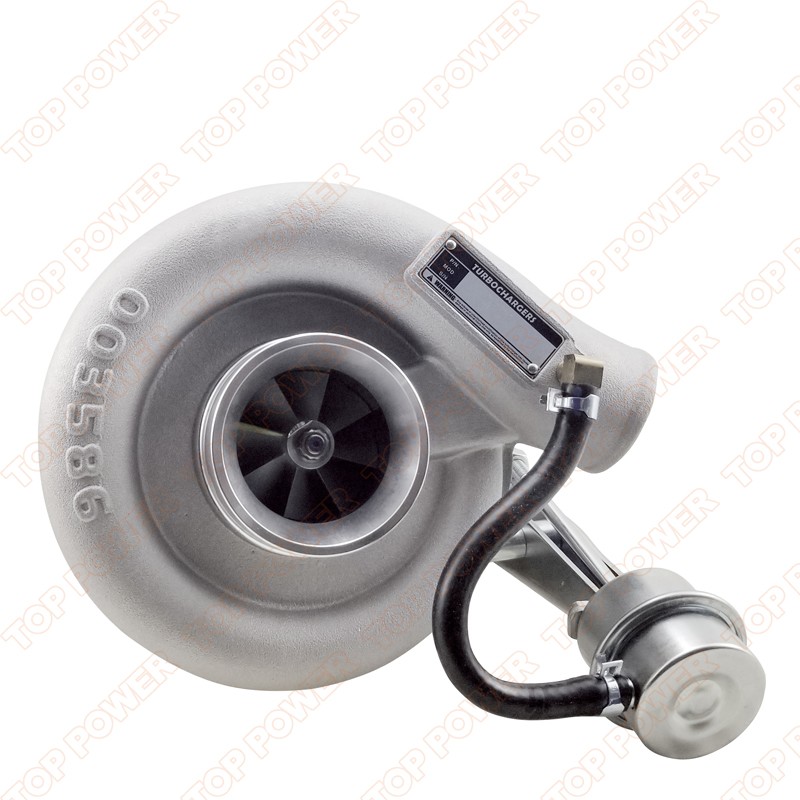

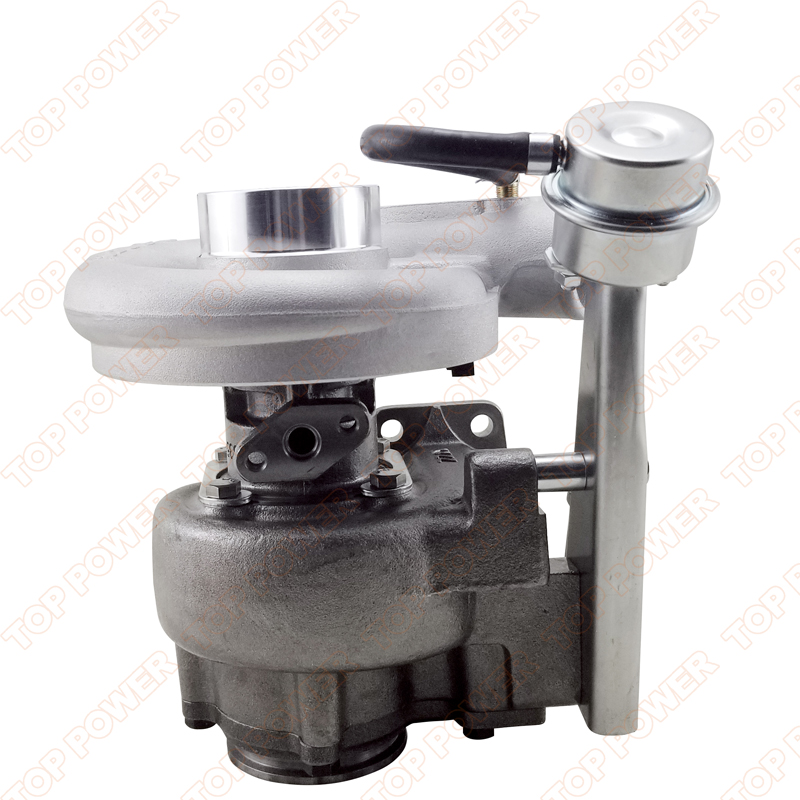

| 4033085 4035201 4035200 4035200 HX35W turbocharger for Cummins DFM DCEC 6BTA engine | |||
| OE Number | 4033085 4035201 4035200 | Cooled Type | Oil Cooled |
| Part Number | 4035200 | Weight | 10 KG |
| Turbo Model | HX35W | Specification | 25*15*25 cm |
| Engine Code | DCEC | 6BTA | 6BTA160 | Warranty | 1 Year |
| Material | K18 | Product Capacity | 20,000/Month |
| Application | For Cummins 217 HP For DFM Others Various B180 DCEC Engine | ||
Basic Info

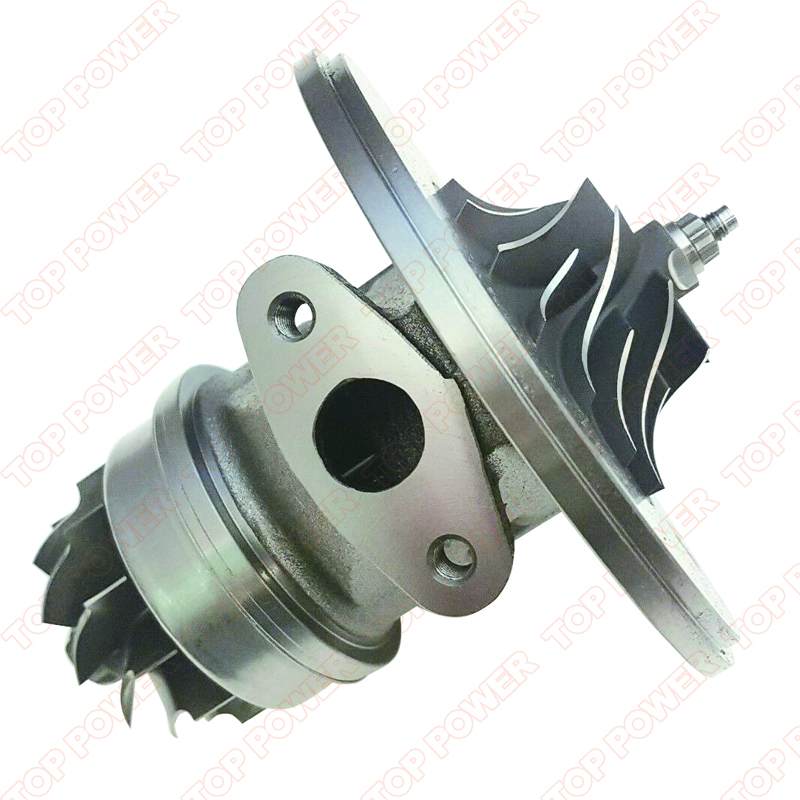

| CHRA | 4029491 | Back plate | - |
| Bearing Housing | 4035136 | Repair Kit | 4027964 |
| Turbine Wheel | 3519336 | Turbine Housing | - |
| Comp. Wheel | 3599589 | Compressor Cover | - |
| Heat Shield Number | - | Nozzle Ring Assembly | - |
| Gasket Kit | - | Actuator | - |
Precision-Engineered Aerodynamics for Heavy-Duty Efficiency
4033085 4035201 4035200 4035200 HX35W turbocharger for Cummins DFM DCEC 6BTA engine features a high-flow 76mm/58mm compressor wheel (inducer/exducer) optimized for Cummins 6BTA engines, delivering 230+ horsepower and 650+ N·m torque under sustained heavy loads. Its asymmetric turbine housing design reduces exhaust backpressure by 18%.
Oil-Cooled Hydrodynamic Bearing System
Equipped with a full-floating bearing assembly and dual oil-cooling channels, 4033085 4035201 4035200 4035200 HX35W turbocharger for Cummins DFM DCEC 6BTA engine reduces friction by 30% compared to standard designs. This system includes an integrated oil jet cooling mechanism that maintains stable operating temperatures under prolonged high-load conditions.
Plug-and-Play OEM Compatibility with DFM DCEC 6BTA Engines
4033085 4035201 4035200 4035200 HX35W turbocharger for Cummins DFM DCEC 6BTA engine eliminates the need for ECU remapping or adapter plates. The multi-angle turbine housing allows 360° rotational adjustment for optimal exhaust routing, while pre-installed oil feed lines and a 7–8" adjustable wastegate rod ensure seamless integration with Dongfeng truck chassis.
Extreme-Duty Materials for Harsh Environments
4033085 4035201 4035200 4035200 HX35W turbocharger for Cummins DFM DCEC 6BTA engine withstands cyclic fatigue and corrosion in dusty or high-humidity environments. The HT200 heat-resistant bearing blocks undergo rigorous testing to ensure compliance with Arctic cold-start requirements (-36°C) and high-altitude performance standards.
About Our Company
Fengcheng Top Power Co., Ltd, located at No. 4, 3rd Road, Zone B, Erlong Industrial Park, Fengcheng city, covers 6,800 ㎡ with a 6,700 ㎡ construction area and 50 - million - yuan total assets. With 90 employees (35 with college degrees or above), It is a professional manufacturer integrating the production of auto parts, turbocharger parts, drone turbojet parts, super blower parts, and design and research and development.
FAQ
Do you test all your goods before delivery?
Yes, 100% tested before delivery.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost.
Contact Us
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Our product warranty period is one year.
We keep good quality and competitive price to ensure our customers benefit
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
EXW, FOB, CFR, CIF, DDU
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
